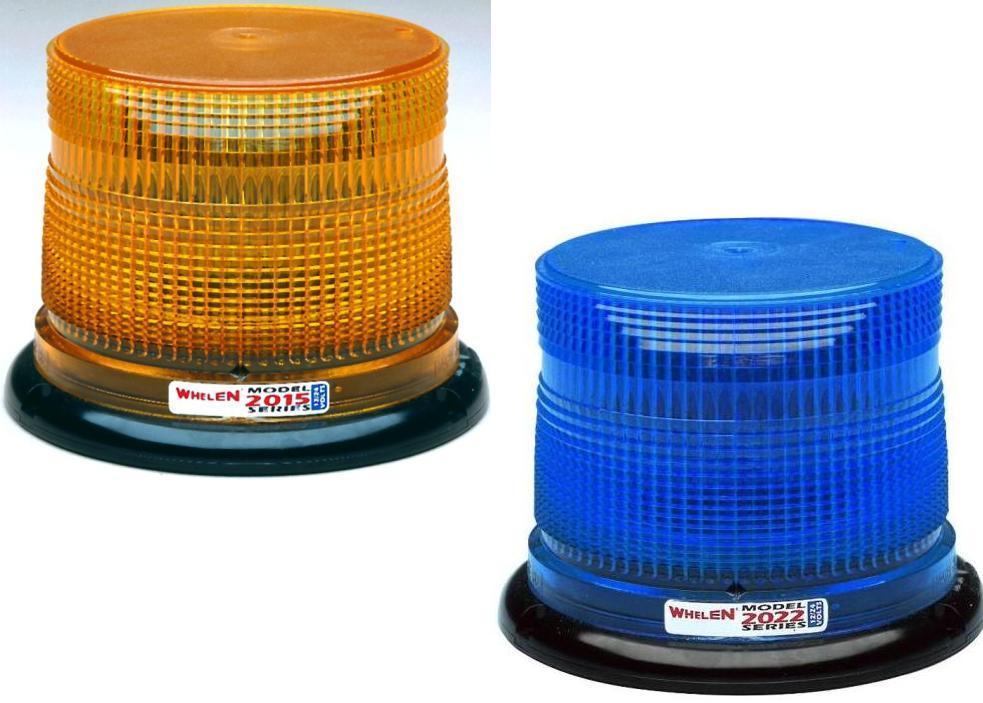

WHELEN 2022 Strobe Beacons, Perm. Mount

WHELEN 2022 Strobe Beacons, Perm. Mount

WHELEN 2022 Strobe Beacons, Perm. Mount
Click to enlarge image(s)
These low profile domes with double fresnel optic lenses provide superior visibility.

FEATURES

All 2000 Series Beacons offer the following standard features:

• All strobe power supplies are fully enclosed within the sturdy polycarbonate base itself for added protection against moisture and vibration.

• For added protection against the elements, all strobe power supplies are double dipped in a uniquely formulated silicone mixture before being secured into the base enclosure.

• All 2000 Series strobe beacons come standard with a base that allows for either external flange mount, internal "secure" mount, or pipe mount.

• Older style strobe beacons have been rendered obsolete as there is no longer a need for external hooks, base plates or inconvenient and expensive pipe adapter kits.

• All 2000 series strobe beacons are now equipped with the newest state-of-the-art single lens optics, to optimize their light output.

• All beacons utilize the same low and high domes for ease of interchangeability. (Contact us if you wish to order other than low dome.)

• Available in six colours: A=Amber, C=Clear, B=Blue, R=Red, G=Green and P=Purple.

• Easy access for modular parts replacement, making it unnecessary to remove the beacon from your roof.

• All Whelen "Value" 2000 Series strobe products offer a 3 year warranty on all strobe power supplies, and a 6 month warranty on all flashtubes.

• All models 12/24 VDC operation.

• Multiple flash patterns

• Low current consumption, reverse polarity protection.

SPECIFICATIONS

• Class 1, SAE Certified Strobe Beacon (amber & clear only)

• Class 2, SAE Certified Strobe Beacon (red, blue & green)

• 22 watts output power.

• Manual Hi/Low intensity feature standard, automatic Hi/Low models available. (Contact us to order other than Standard.)

• "Flash-4" feature. All patterns standard in all beacons:
- QuintFlash: 72 FPM (default pattern)
- Double Flash: 115 FPM
- Modu-Flash: 150 / 370 / 150 variable FPM
- Action Flash: A unique combination of Quint & Single Flash
(To make a choice from the QuintFlash factory default pattern,
simply cut the specified jumper on the strobe power supply)

• 1.7 amps/12 VDC, 0.85 amps/24 VDC.

• Polycarbonate or cast aluminum base material. (Contact us to order other than polycarbonate base.)
