SHO-ME Traffic Guide Amber Arrow Board with Shock Mounted Lamps

SHO-ME Traffic Guide Amber Arrow Board with Shock Mounted Lamps

SHO-ME Traffic Guide Amber Arrow Board with Shock Mounted Lamps
Click to enlarge image(s)

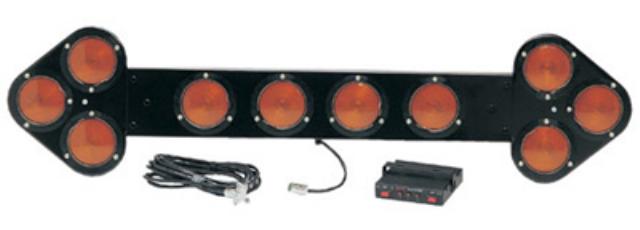

The Traffic Guide Arrow Board with Shock Mounted Lamps directs oncoming traffic right, left, and both ways around a roadway obstruction. Using the caution mode, the 2 corner lamps of the arrow board flash without indicating direction. The Board is constructed of heavy gauge aluminum and its back panel neatly protects wiring and components. The Arrow Board comes standard with shock mounted, weather tight, sealed amber lamps. The cab mounted Control Box, also constructed of durable aluminum, is easy to install and operate and has pilot lights which indicate the direction the Arrow Board is flashing.


ARROW BOARD:

• Constructed of heavy-gauge, epoxy-coated aluminum.

• Measures 13” (33 cm) H x 54” (137 cm) W x 3" (7.6 cm) D.

• Has ten 4” diameter shock mounted, weather sealed, 27 watts amber incandescent lamps.

• Lamps flash on/off approximately 60 FPM in four operational modes: right arrow, left arrow, double arrow and corner lamps.

• Each panel comes complete with a 15' (457 cm) pre-wired harness to connect it directly to the Control Panel.

• Board mounting brackets sold separately. Available in Permanent Mount (02.6015), Magnetic Mount (02.6016) or Standard Mount (02.6017). Contact us to order brackets.


CONTROL BOX:

• Durably constructed of aluminum.

• Measures 1¼" (3.2 cm) H x 6” (15.25 cm) W x 6¼" (15.9 cm) D.

• Mounting bracket included for easy mounting inside cab.

• Heavy duty toggle switches provide easy selection of operating mode.

• Modes of operation:
- Pass Right - five lamps in right panel flash.
- Pass Left - five lamps in left panel flash.
- Pass Both - five lamps in each panel flash.
- Caution - corner lamps in each panel flash without indicating direction.

• Pilot lamps indicate to operator which direction the arrow panels are flashing.

• Panel mounted 20 amp fuse.

• All wires provided for easy installation.

• All components are easy to service and readily available from the factory.


SPECIFICATIONS:

• 12 VDC.

• 8 lbs (3.6 kg) Standard Arrow Board with shock-mounted lamps.
